Webhook Notifications

Acquired.com uses webhooks to notify your application when events occur, such as, the final status of the payment is known. We deliver webhook notifications to the URI endpoint configured in the Hub. A webhook is an automatic notification that we can send directly to your system after an event takes place against your account. Webhooks are server to server notifications unaffected by potential issues with the front end system and user error.

📘
Note
If your firewall blocks incoming requests, you might need to add our IP addresses to allow you to receive webhooks.

Webhook structure

Each webhook may contain the following headers:

Header	Type	Description
Content-Type	string	The media type of the resource: `application/json`
Company-Id	string	The GUID Company ID associated with the event.
Mid	string	The GUID Mid ID associated with the event. (not required for `customer_new` and `card_new`)
Webhook-Version	string	The version of the webhook body schema.
Hash	string	The calculated hash value.

The webhook body may contain the following parameters:

📘
Note
To view the specific structure of each webhook type, please refer to the webhook detail documentation below.

Field	Type	Description
`webhook_type`	string	Describes the type of event: `status_update` `customer_new` `card_new`
`webhook_id`	string	UUID assigned by Acquired.com for the notification.
`timestamp`	integer	Exact date of when the webhook was delivered in UNIX timestamp format.
`webhook_body`	JSON object	NA
`transaction_id`	string	UUID assigned by Acquired.com for the payment. Implementations should be able to handle blank transaction ID values, since payments can be "cancelled" by users before this value is generated.
`status`	string	The final status for the payment. (To view a list of all statuses, click here.)
`order_id`	string	The order ID value that was passed by you in the payment request.
`customer_id`	string	UUID assigned by Acquired.com for the customer.
`card_id`	string	UUID assigned by Acquired.com for the card.

Validate the integrity of the webhook

We use HMAC_SHA256 to safeguard the integrity of JSON webhook messages. In a single step, we include the complete message alongside the app_key for verification purposes. Upon receiving the webhook, comparing the generated hash with the received hash helps ensure data integrity. A match between the hashes signifies that the JSON payload remains unaltered, confirming the data's integrity.

Follow the below steps to calculate the hash value:

Obtain the JSON payload message from the posted webhook and append your app_key.

"app_key", {"webhook_type": "status_update", "webhook_id": "bc25b699-ffb1-40d5-b508-f6a28aeb18eb", "timestamp": 32908394083, "webhook_body": {"transaction_id": "1d0483a7-6f84-4784-9fba-3c7553847be0", "status": "cancelled", "order_id": "6234ae00-1352-4bd7-872a-f328df1b7096" }}"

HMAC_SHA256 encrypt the resulting string.

bece0bdfcfcb96364e31c653d115731545c3d2a8cdbde73aedff2b085117c30e

Compare the generated hash value, to the previously returned hash value.

Webhook detail

This section provides detailed information on each webhook within the Acquired.com system.

`status_update`

The status_update webhook provides the merchant with the current status of the payment request.

{
 "webhook_type": "status_update",
 "webhook_id": "bc25b699-ffb1-40d5-b508-f6a28aeb18eb",
 "timestamp": 32908394083,
 "webhook_body": {
   "transaction_id": "1d0483a7-6f84-4784-9fba-3c7553847be0",
   "status": "cancelled",
   "order_id": "6234ae00-1352-4bd7-872a-f328df1b7096"
 }
}

`customer_new`

When a customer_reference is provided in the Hosted Checkout request, a customer_new webhook containing the customer_id will be provided when a payment request is made.

{
  "webhook_type": "customer_new",
  "webhook_id": "3e22ae7a-3d4d-47d7-99d0-67ecb3db781c",
  "timestamp": 1684254231,
  "webhook_body": {
    "transaction_id": "",
    "status": "success",
    "order_id": "J97C6572ddt223-952",
    "customer_id": "0dbc3d71-4015-d9f6-633e-9b8290986927"
  }
}

`card_new`

When a customer's card details used in the Hosted Checkout are saved, the card_new webhook will be sent containing the card_id. Card IDs are only created if the payment request is successful.

{
  "webhook_type": "card_new",
  "webhook_id": "d68a7a29-47ce-43ea-bad3-0e4a35c5f09c",
  "timestamp": 1684254231,
  "webhook_body": {
    "transaction_id": "0e789cf6-7e7a-3c55-870c-e69325975134",
    "status": "success",
    "order_id": "J97C6572ddt223-952",
    "card_id": "77e595b6-686b-724b-6340-6c8ee0123778"
  }
}

Webhook retry policy

We consider a webhook as having been successfully delivered when we receive a HTTP status code 200 from your webhook URI.

If we do not receive a 200 success status response code then we will start retrying. Our retry logic will resend the notification every 5 minutes until a 200 status code is returned. If we do not receive a 200 status code after 25 minutes, we will discard the webhook.

Configuring webhooks

Webhooks can be configured from within the Hub, you select the webhook events that are required and define the URL(s) that are to be targeted.

Firstly, go to Settings menu and from the Company tab select Developers.
Open the Webhooks tab.
Select + Add Endpoint and enter the URL to be targeted when sending webhook notifications.
From the drop-down list select the events that you want to trigger the notifications. (You can select multiple at a time). If you select status_update the statuses returned are displayed here.

📘
Note
For Hosted Checkout set up, please refer to the relevant guides.

Managing webhooks

Edit and disable webhooks

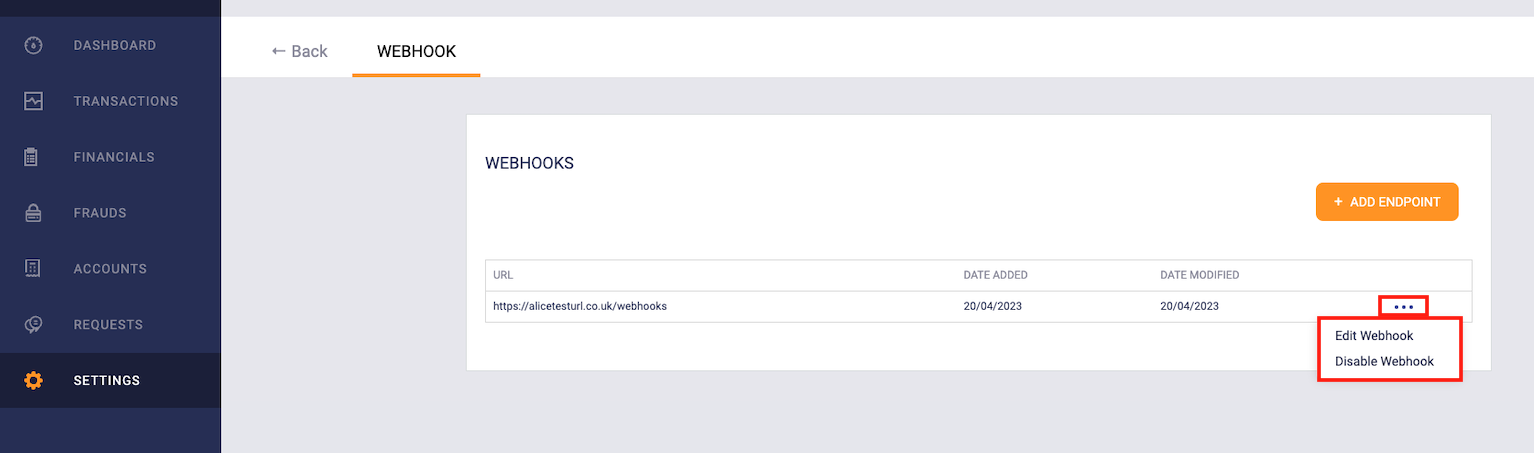

You can edit or disable your existing webhooks by clicking into the ellipsis and selecting either option. Once you have confirmed the action, the required amendments will be made.

Viewing webhooks

A list of all attempted webhooks is displayed in the Developer tab in the Webhook Logs section. All details of the webhook can be analysed when clicking into the detail. You also have the option to manually resend the webhook from within the action column or from within the webhook detail.

📘
Note
As with other aspects of the Hub, you can also export your filtered or unfiltered data by running the export button.
